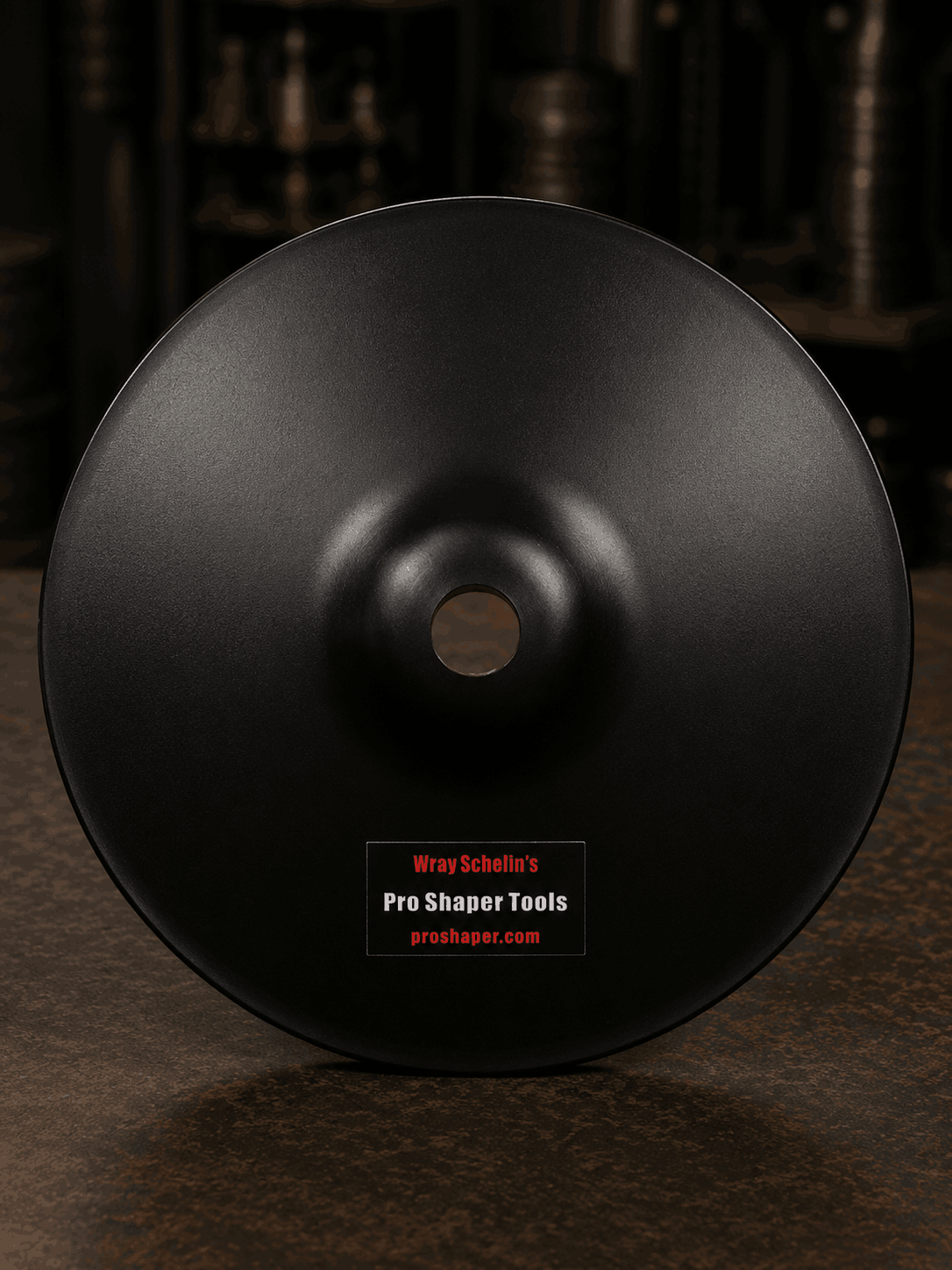

9″ SHRINKING DISC BACKING PAD
SHRINKING DISC BACKING PAD
This is a new product I have developed to insure proper support for my 9″ dia. shrinking discs.
Shrinking Disk Pad $25.00 * plus shipping
A proper mounting of my 9″ dia. shrinking disc should include a 3″ to 4″ dia. mount flange(standard equipment with most 7 and 9 inch autobody right angle grinders) then the 9″ Backing Pad, then the shrinking disc. The securing nut should be below flush so it won’t rub on the panel when using the disc
How to mount your 9″ Shrinking Disc
(You need to purchase the backing pad if you haven’t done so already)
Place the support hub on first (Necessary) it comes with the grinder when you buy it new
Put the backing pad on top concave side up
Place the 9″ shrinking disc on top with the rounded edge up.
Screw on the flange neck nut (Make sure the nut and spindle are both below the working surface)
